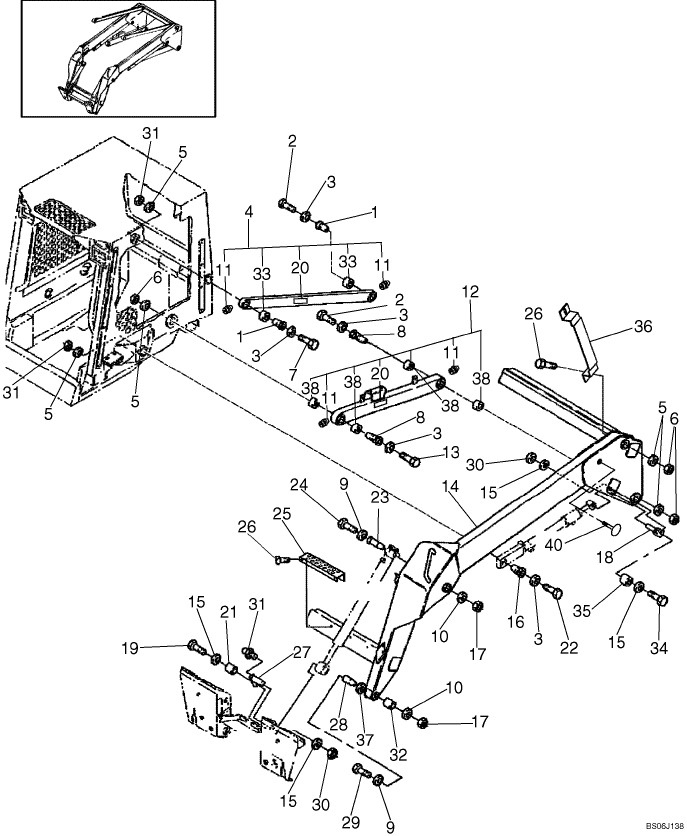

09.01 BOOM

Key	Product Name	Price	Qty
1	PIN	$319.20
1	PIN	$40.00	Out of stock.
1	PIN	$221.00
2	BOLT	$9.95
3	WASHER (PKG of 10)	$24.50
4	LINK UPPER	$795.00
4	ARM	$530.00
4	LINK, UPPER	$162.73	Out of stock.
5	WASHER (PKG of 5)	$48.75
6	NUT (PKG of 5)	$6.00
7	BOLT (PKG of 2)	$12.10
8	PIN	$188.20
8	PIN	$0.00	Out of stock.
8	PIN ELECT TERMINAL	$649.60
9	WASHER (PKG of 10)	$6.90
10	WASHER (PKG of 5)	$27.50
11	NIPPLE LUBE (PKG of 10)	$12.00
12	LINK LOWER	$1,715.00
12	ARM	$1,540.00
12	LINK, LOWER	$0.00	Out of stock.
	LINK LOWER	$1,105.55	Out of stock.
12	LINK LOWER	$1,640.80
	LINK, LOWER	$0.00	Out of stock.
12	LINK LOWER	$1,230.00
12	LINK LOWER	$1,584.00
12	LINK UPPER	$1,635.00
12	LINK, LOWER	$0.00	Out of stock.
	LINK LOWER	$1,170.00
12	LINK, LOWER	$0.00	Out of stock.
	LINK LOWER	$1,645.00
12	LINK, LOWER	$0.00	Out of stock.
13	BOLT	$9.40
14	BOOM	$0.00	Out of stock.
14	BOOM	$0.00	Out of stock.
	BOOM	$15,710.00	Out of stock.
14	ARM	$0.00	Out of stock.
14	BOOM	$0.00	Out of stock.
15	WASHER (PKG of 2)	$1.80
16	PIN	$302.40
17	NUT LOCK (PKG of 10)	$4.10
18	PIN	$59.78
19	BOLT (PKG of 10)	$5.40
20	DECAL WARNING	$5.10
20	DECAL WARNING	$8.15
21	SPACER (PKG of 2)	$9.30
22	BOLT	$8.60
23	PIN	$170.15
23	PIN	$0.00	Out of stock.
24	BOLT (PKG of 5)	$59.00
25	FOOT REST	$103.00
26	BOLT (PKG of 10)	$14.50	Out of stock.
26	SCREW SELF-TAP	$3.50
27	PIN	$34.25
28	PIN	$53.33	Out of stock.
28	PIN	$0.00	Out of stock.
29	BOLT (PKG of 5)	$35.00
30	NUT LOCK (PKG of 60)	$13.20
31	NIPPLE LUBE (PKG of 10)	$12.50
32	HUB	$144.60
33	BUSHING (PKG of 2)	$116.50
34	BOLT (PKG of 10)	$4.90
35	SPACER	$7.55
36	BRACKET	$17.00
37	WASHER (PKG of 4)	$10.24	Out of stock.
22	BRACKET	$33.50
38	BUSHING (PKG of 5)	$81.25
39	SCREW SELF-TAP (PKG of 10)	$7.50
40	FASTENER (PKG of 20)	$56.00
