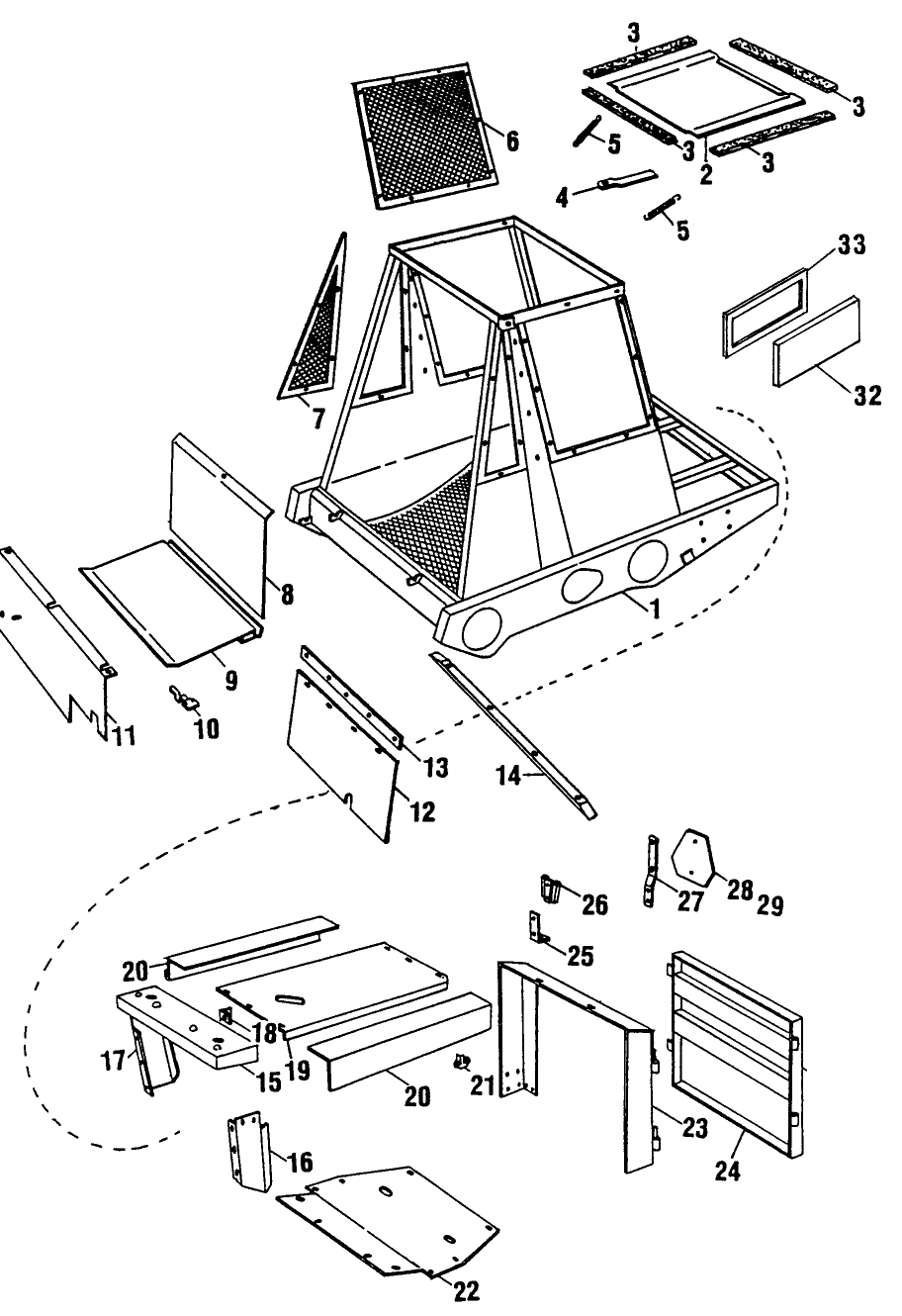

001 MAIN FRAME, ENGINE SHROUDING GROUP

Key	Product Name	Price	Qty
1	FRAME	$0.00	Out of stock.
1A	FILTER	$0.00	Out of stock.
	SCREEN	$84.30	Out of stock.
2	ROOF	$0.00	Out of stock.
3	STRIP SEALING	$196.30
4	HANDLE	$0.00	Out of stock.
	SCREW (PKG of 10)	$36.00
	WASHER (PKG of 50)	$10.00
	NUT LOCK (PKG of 60)	$13.20
5	SPRING (PKG of 5)	$189.75
6	PANEL, SIDE	$0.00	Out of stock.
	BOLT CARRIAGE (PKG of 10)	$25.50
	BOLT (PKG of 10)	$1.50
	WASHER (PKG of 10)	$1.90
	NUT (PKG of 20)	$2.20
	WASHER LOCK (PKG of 10)	$1.00
	SCREEN	$0.00	Out of stock.
7	SCREEN	$0.00	Out of stock.
8	COVER	$0.00	Out of stock.
9	COVER, DRIVERS SEAT	$0.00	Out of stock.
10	CLIP (PKG of 3)	$13.50
	SCREW SELF-TAP (PKG of 10)	$44.00
11	COVER	$0.00	Out of stock.
	WASHER (PKG of 25)	$1.50
12	DEFLECTOR	$0.00	Out of stock.
	BOLT CARRIAGE (PKG of 10)	$4.60
	WASHER, LOCK (PKG of 20)	$4.20	Out of stock.
	NUT (PKG of 20)	$5.40
13	001 MAIN FRAME, ENGINE SHROUDING GROUP	$0.00	Out of stock.
14	WEAR STRIP	$151.00
	SCREW SELF-TAP (PKG of 25)	$32.50
15	BRACKET	$0.00	Out of stock.
	BOLT (PKG of 25)	$17.75
	NUT SPRING (PKG of 10)	$56.50
16	SPARE PART	$0.00	Out of stock.
	WASHER (PKG of 10)	$1.20
17	SPARE PART	$0.00	Out of stock.
18	BRACKET	$0.00	Out of stock.
19	HOOD	$0.00	Out of stock.
	HOOD	$0.00	Out of stock.
	BOLT (PKG of 10)	$4.10
20	SHIELD	$0.00	Out of stock.
21	LATCH	$16.00
	SCREW (PKG of 10)	$7.80
	WASHER LOCK (PKG of 10)	$2.00
	NUT (PKG of 25)	$20.75
22	SHIELD	$0.00	Out of stock.
	BOLT (PKG of 10)	$8.10
	WASHER (PKG of 10)	$4.20
	WASHER LOCK (PKG of 25)	$4.75
	WASHER (PKG of 10)	$6.90
23	SUPPORT	$0.00	Out of stock.
	BOLT (PKG of 10)	$1.50
	WASHER LOCK (PKG of 10)	$1.90
24	DOOR	$0.00	Out of stock.
	NUT WING (PKG of 10)	$26.50
25	BRACKET	$0.00	Out of stock.
26	BRACKET (PKG of 5)	$41.25
27	SUPPORT	$5.85	Out of stock.
	SCREW (PKG of 10)	$35.50
28	EMBLEM	$31.60
29	DECAL	$28.00
30	MOLDING	$89.50	Out of stock.
31	STRIP FILLING	$26.82	Out of stock.
32	COVER	$0.00	Out of stock.
	SCREW (PKG of 10)	$47.00
	SCREW (PKG of 10)	$30.00
	WASHER SEALING (PKG of 10)	$60.50
33	GASKET	$25.25
34	KIT, DECALS	$0.00	Out of stock.

Add Items to Cart

Add to Cart

OR

• | Add to Compare

Quick Overview

Frame Weld Assy., Main

Product Description

Frame Weld Assy., Main

Additional Information

Part Number	L778-33162
