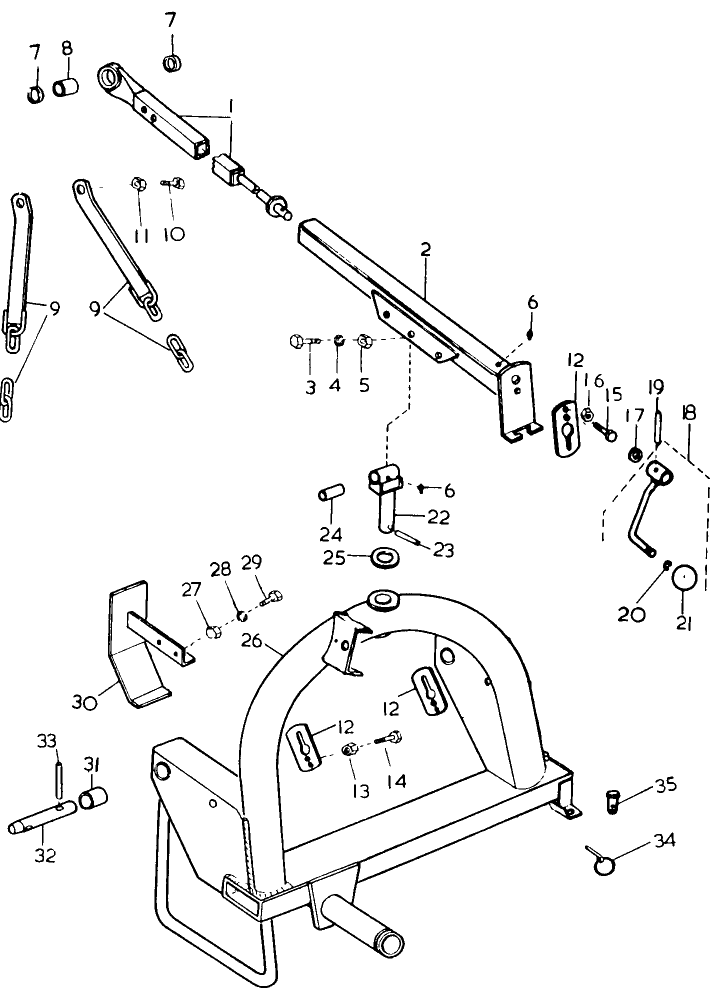

001 MAIN FRAME & TOP LINKAGE

Key	Product Name	Price	Qty
1	BAR	$0.00	Out of stock.
	LINK, CONNECTING	$0.00	Out of stock.
2	ARM	$0.00	Out of stock.
3	SCREW	$0.00	Out of stock.
4	WASHER LOCK (PKG of 10)	$20.50
5	NUT (PKG of 10)	$4.80
6	NIPPLE LUBE (PKG of 10)	$12.00
7	SPACER	$0.00	Out of stock.
8	SPACER	$17.00
9	CHAIN	$0.00	Out of stock.
10	SCREW	$0.00	Out of stock.
11	TOOL, GENERAL	$0.00	Out of stock.
12	SUPPORT	$0.00	Out of stock.
13	SCREW	$0.00	Out of stock.
15	BOLT (PKG of 10)	$1.30
16	NUT (PKG of 10)	$1.40
17	WASHER (PKG of 5)	$23.75
18	HANDLE, CRANKED	$0.00	Out of stock.
19	PIN, ROLL	$0.00	Out of stock.
20	RING SNAP	$3.50
21	KNOB	$56.25
22	SUPPORT	$0.00	Out of stock.
23	PIN LOCK (PKG of 10)	$5.80
24	SPACER	$100.95
25	WASHER	$0.00	Out of stock.
26	FRAME	$0.00	Out of stock.
27	NUT	$0.00	Out of stock.
28	WASHER LOCK (PKG of 5)	$5.50
29	BOLT	$0.00	Out of stock.
30	DEFLECTOR	$0.00	Out of stock.
31	BEARING, CAMSHAFT	$0.00	Out of stock.
32	PIN	$0.00	Out of stock.
33	PIN LOCK (PKG of 5)	$22.50
34	PIN, SPLIT (COTTER)	$0.00	Out of stock.
35	PIN	$0.00	Out of stock.

Add Items to Cart

Add to Cart

OR

• | Add to Compare

Quick Overview

Link Weld Assy.

Product Description

Link Weld Assy.

Additional Information

Part Number	438-7716
