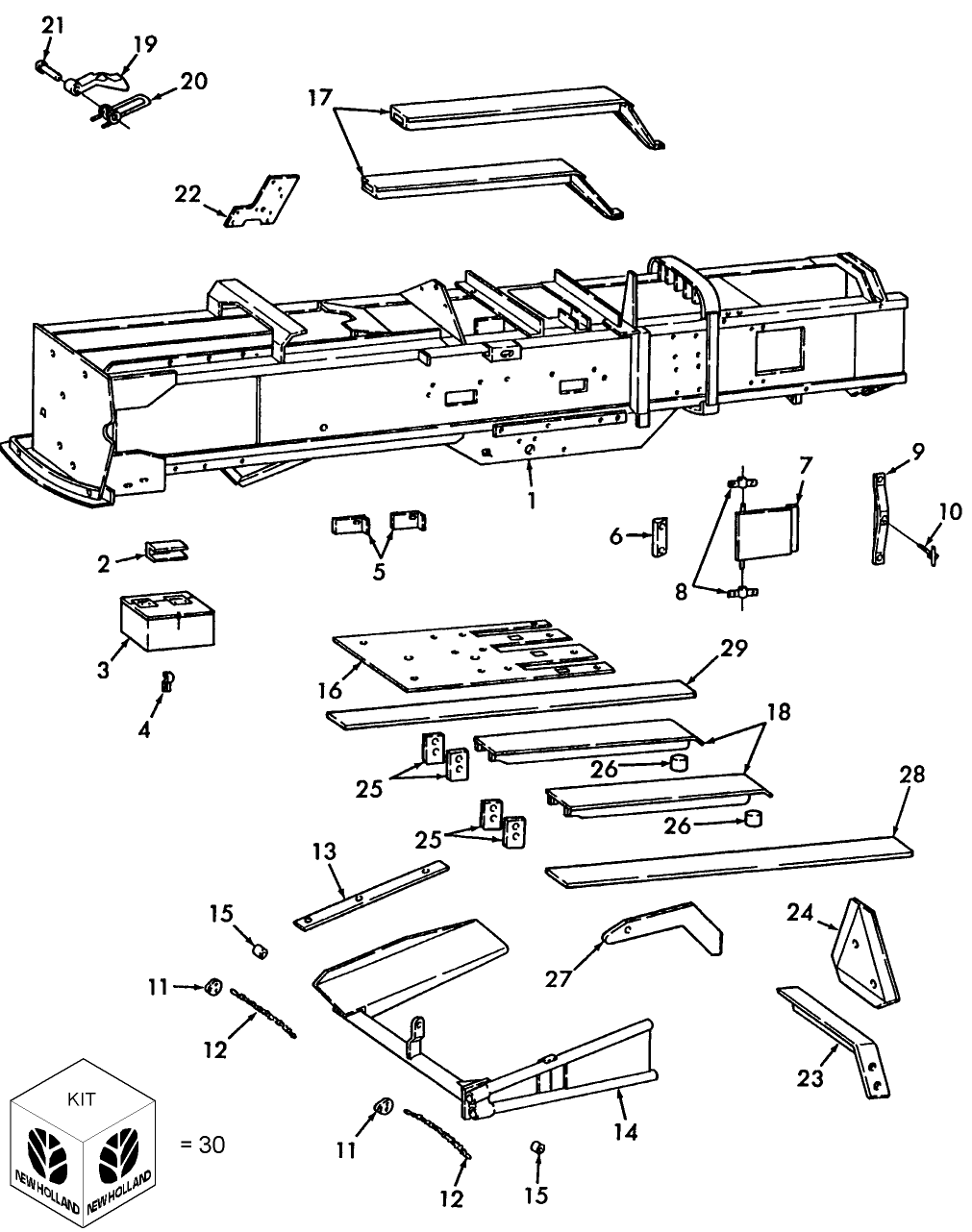

002 MAIN FRAME & BALE CHUTE

Key	Product Name	Price	Qty
1	BALE CHAMBER	$0.00	Out of stock.
2	STOP	$0.00	Out of stock.
	BOLT (PKG of 10)	$8.10
	WASHER LOCK (PKG of 25)	$4.75
	WASHER (PKG of 10)	$39.00
3	BOX TOOL	$113.70
	BOLT SERRATED (PKG of 10)	$23.00
	NUT SERRATED (PKG of 50)	$21.50
4	LATCH	$35.25
	SCREW (PKG of 10)	$7.80
	WASHER (PKG of 10)	$1.10
	WASHER LOCK (PKG of 10)	$2.00
	NUT (PKG of 25)	$20.75
5	NUT/1/2-13	$0.96	Out of stock.
6	STOP	$10.87
	BOLT PLOW (PKG of 10)	$26.00
	BOLT PLOW (PKG of 5)	$15.25
	BOLT PLOW (PKG of 10)	$14.00
	WASHER LOCK (PKG of 10)	$1.90
	NUT (PKG of 25)	$3.00
7	DOOR	$0.00	Out of stock.
	WASHER (PKG of 10)	$6.60
8	BRACKET	$48.25
	BOLT CARRIAGE (PKG of 10)	$6.50
	WASHER LOCK (PKG of 10)	$1.00
9	SUPPORT	$43.83
	BOLT CARRIAGE (PKG of 10)	$25.00
	NUT LOCK (PKG of 10)	$4.10
10	BOLT	$18.75
	NUT, WING	$5.39	Out of stock.
	NUT (PKG of 20)	$7.40
11	BRACKET	$28.00
	NUT LOCK (PKG of 60)	$13.20
12	CHAIN	$28.85
	BOLT (PKG of 10)	$32.00
13	GUIDE	$69.43
	BOLT PLOW (PKG of 10)	$10.50
	WASHER, LOCK (PKG of 20)	$4.20	Out of stock.
	NUT (PKG of 20)	$5.40
14	CHUTE	$0.00	Out of stock.
	BOLT CARRIAGE (PKG of 5)	$14.00
15	SPACER (PKG of 5)	$10.60	Out of stock.
16	SPARE PART	$365.00
16	FLOOR	$845.15	Out of stock.
	BOLT CARRIAGE (PKG of 10)	$11.50
	SCREW (PKG of 10)	$38.00
17	003 MAIN FRAME	$206.78
18	SPARE PART	$160.43
20	SPRING	$1.95	Out of stock.
19	DOG	$98.10
21	PIN (PKG of 5)	$27.00
	PIN SPLIT (COTTER) (PKG of 10)	$9.10
22	SUPPORT	$0.00	Out of stock.
	BOLT (PKG of 10)	$6.60
23	BRACKET	$23.60
	WASHER (PKG of 50)	$10.00
24	EMBLEM	$31.60
	DECAL	$28.00
25	PLATE	$25.37
	BOLT CARRIAGE (PKG of 5)	$7.75
	BOLT (PKG of 10)	$6.70
26	SPACER	$7.30	Out of stock.
	SCREW	$0.00	Out of stock.
27	DOG	$70.00
28	PLATE	$545.67	Out of stock.
	BOLT PLOW (PKG of 10)	$47.00
29	PLATE	$409.51	Out of stock.
30	KIT	$5,224.00	Out of stock.

Add Items to Cart

Add to Cart

OR

• | Add to Compare

Quick Overview

Bale Chamber

Product Description

Bale Chamber

Additional Information

Part Number	515-28297
